Newest MPPS V22 ECU Chip Tuning Tool

Newest MPPS V22 ECU Chip Tuning Tool

Latest Version: MPPS V22

Support System: WIN10, WIN7 (64bit)

Support Multi-languages:

Afrikaans, Albanees, Bahasa Melayu, Czech, Cymraeg, Dansk, Deutsch, Esti, English, Espanol, Filipino, Finnish, Francais, Galego, German, Hrvatski, Indonesia, Italiano, Kiswahili, Latviesu, Lietuviskai, Magyar, Malti, Nederlands, Norsk, Polska, Portuguese, Romanian, Slovencina, Slovenski, Srpski, Suomea, Svensk, Turkish

The MPPS is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:

Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).

Selectable full / partial reading and writing when the ECU allows this function.

Selectable reading / writing speed.

Writing “changes only” function for faster programming (when supported by the ECU).

Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.

Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.

Boot mode support for ECU’s with C167 and ST10 processors.

EEprom read/write functions for some ECU’s are included.

MPPS V22 Features:

Added new FRF decryption in Tricore Boot.

Added for PSA ME7.4.5 K-line/CAN and Special Mode.

Added for Opel Vauxhall ME9.6.

Added for Renault Delphi DCM 1.2 Can.

Added for VAG Simos 6.2/6.3.

Corrected a problem with Delphi E87 checksum.

Added new antituning search for EDC17 ecu’s.

Added (M)EDC17 Slave ecu’s both TP2 and UDS.

Various corrections and fixes.

Features:

TPROT / DS check feature, for testing if TPROT is active without opening ECU

Auto detects ECU and processor type. No need to select from list, everything is automatic

Read/Write of all memories Eeprom, Irom, Xrom (where possible)

Patch function for OBD Flashing of TPROT ECU’s in boot mode (supports only VAG at the moment)

Support for unlocking of VAG Simos PCR and Simos 8 with external eeprom.

Checksum Correction supported for Bosch MEDC17 irom and eeprom.

Checksum Correction supported for Simos PCR, Simos 8 and SID208, SID209, SID305, SID807 irom

NEW! Support for Bosch Service Mode to read password on ECUs using TP12+

NEW!Special file utility for creating OBD unlock files from VAS FRF/SGO containers (flash containers are not provided!). This function will allow you to work completely from OBD on locked ECUs!

The MPPS is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:

Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).

Selectable full / partial reading and writing when the ECU allows this function.

Selectable reading / writing speed.

Writing “changes only” function for faster programming (when supported by the ECU).

Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.

Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.

Boot mode support for ECU’s with C167 and ST10 processors.

EEprom read/write functions for some ECU’s are included.

VAG MEDC17 TPROT level checking without opening the ECU.

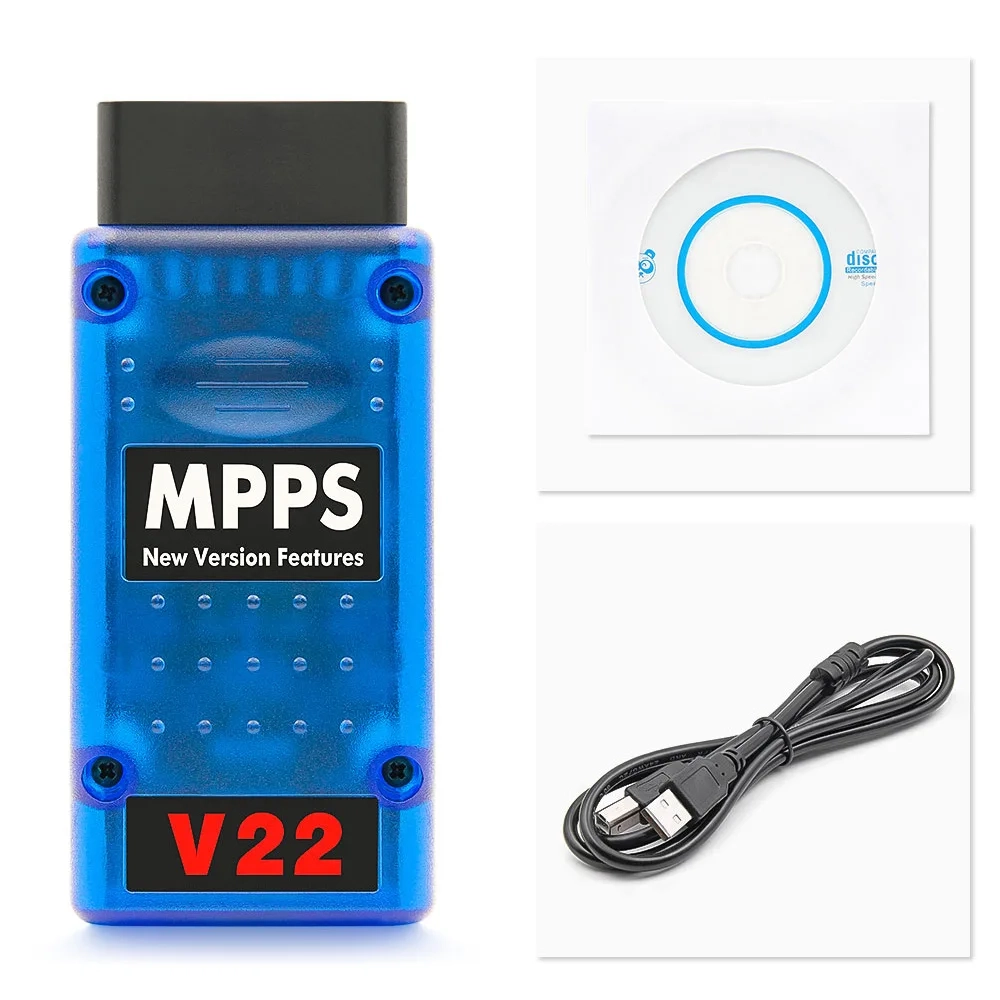

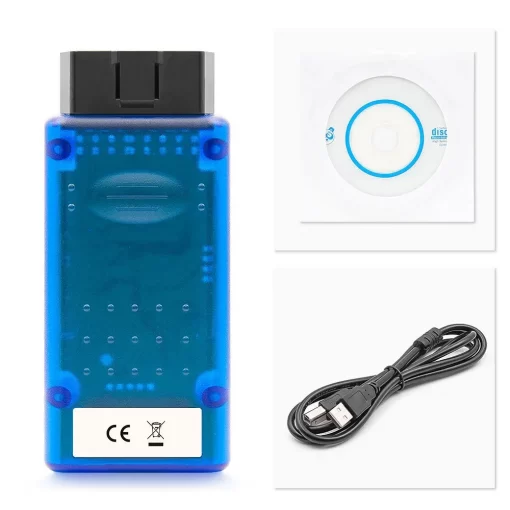

Packing List:

1x MPPS Main Unit

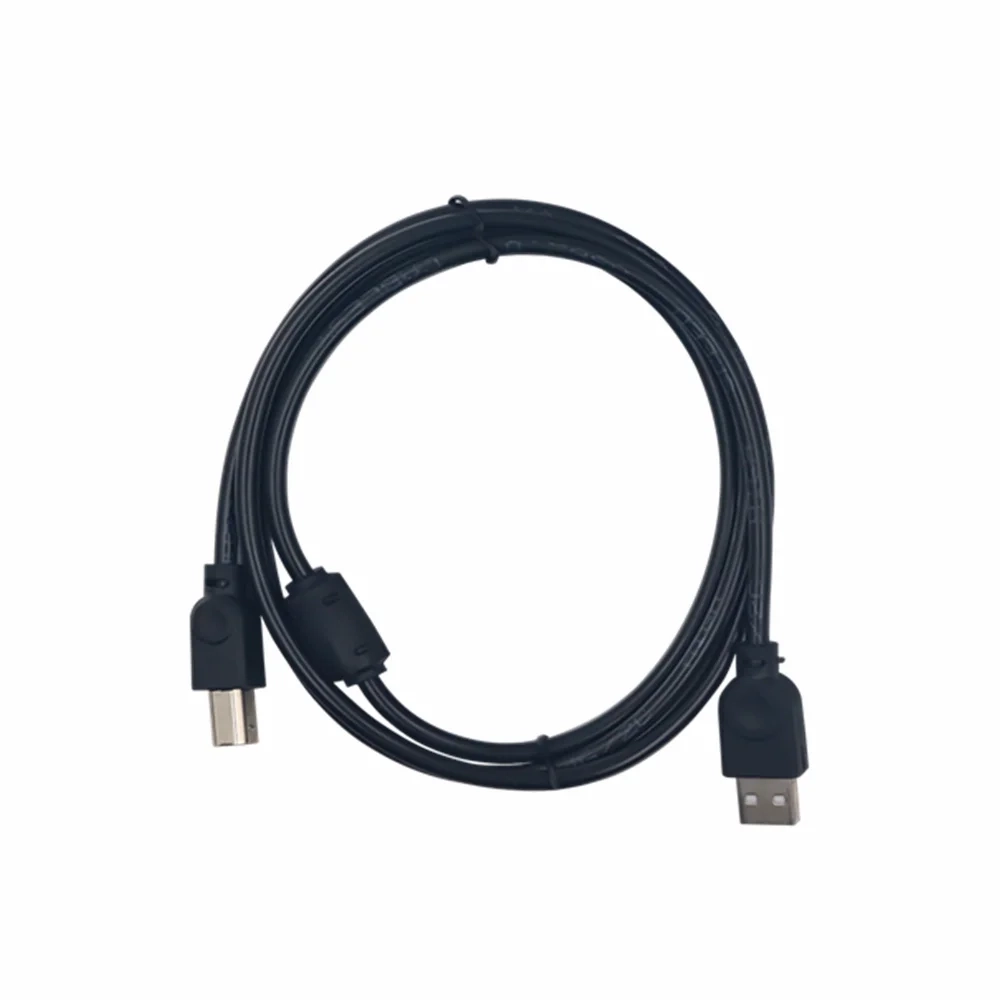

1x USB cable
