ELM327 USB with switch 25K80 chip V1.5 for Ford FORScan HS-CAN/MS-CAN OBD2 Diagnostic Scanner

ELM327 USB with switch 25K80 chip V1.5 for Ford FORScan HS-CAN/MS-CAN OBD2 Diagnostic Scanner



Top 4 Reasons to Get Plastic ELM327 USB With Switch Diagnostic Cable:

1: Latest ELM327 USB With Switch includes PIC18F25K80 and CH340T.

2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.

3: Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, plus more.

4: Support Windows 7 and WIN10.



OBDII Protocols:

SAE J1850 PWM (41.6Kbaud)

SAE J1850 VPW (10.4Kbaud)

ISO9141-2 (5 baud init, 10.4Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250*Kbaud)

CAN (11*bit ID, 125*Kbaud)

CAN (11*bit ID, 50*Kbaud)



Product Description

Introduction:

With the cable and the one of the supported software vendors you can detected modules which are not visible for regular

OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327 USB With Switch.

Basic Features:

Reset fault /trouble codes / parameter ids (PIDs)

Change car configuration data

Run tests

Services procedures

Program certain models

Pin Configurations:

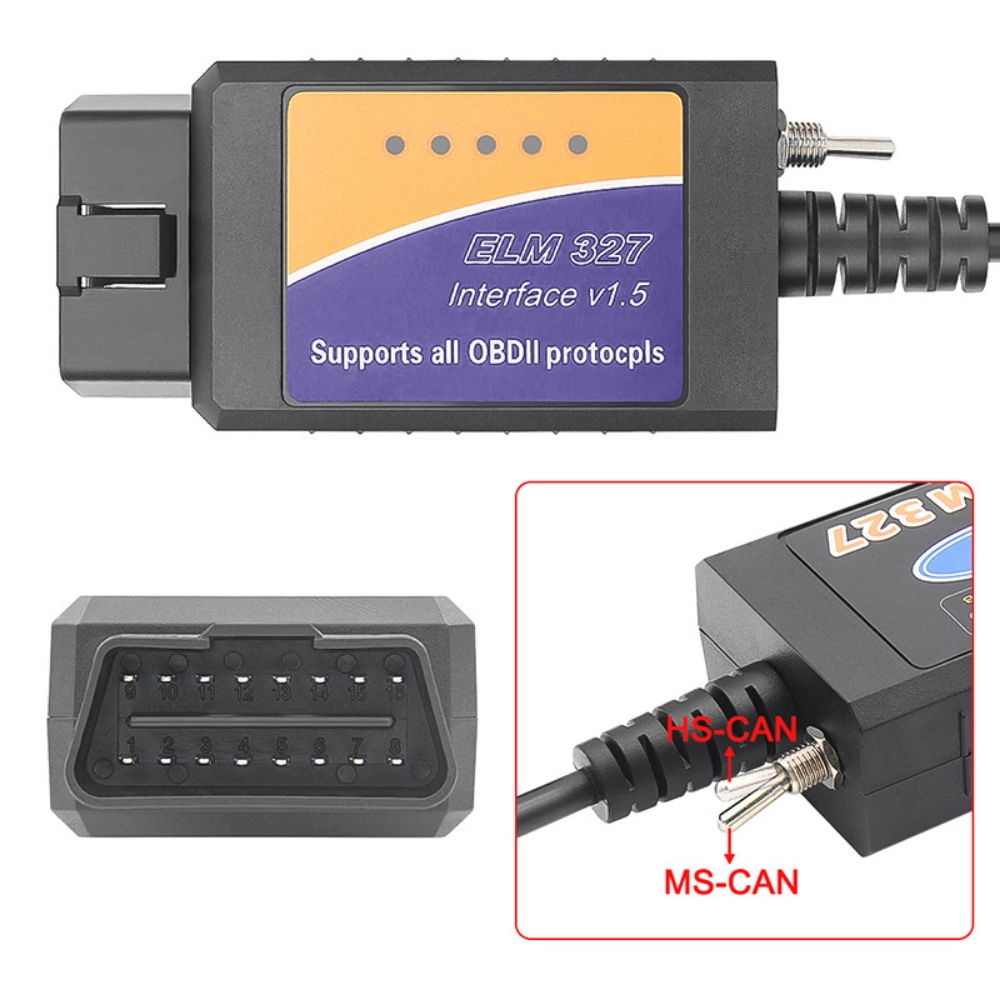

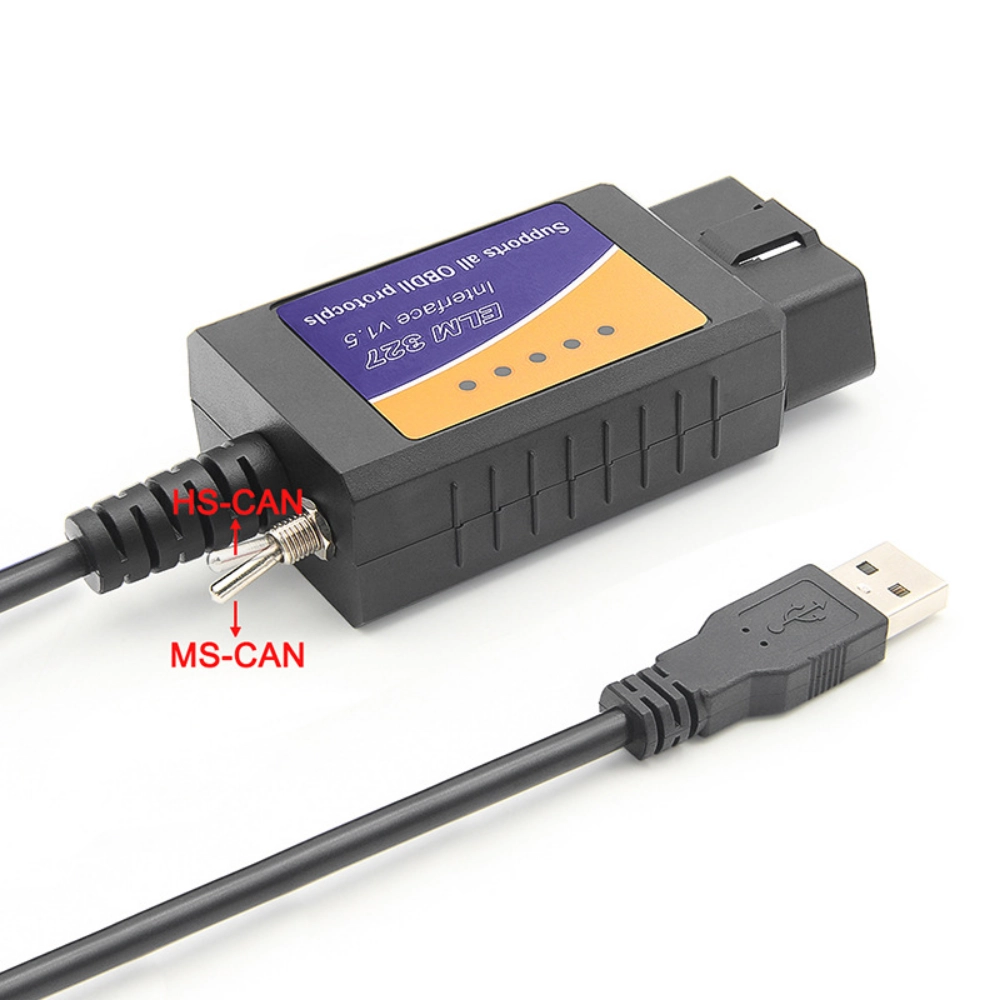

Switch position one: HS CAN – Occupies pins 6 and 14

Switch position two: MS CAN – Occupies pins 3 and 11







Hidden function Support car list:

2006-2016 classical for Focus

2012-2015 new for Focus

2013-2015 for Kuga



Please note that many models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327 USB With Switch, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.

ELM327 USB With Switch supports HS CAN from the stock, because for HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.



Supported Vehicles:

Many vehicles that can be addressed using an ELM via an OBDII connector.



Packing List:

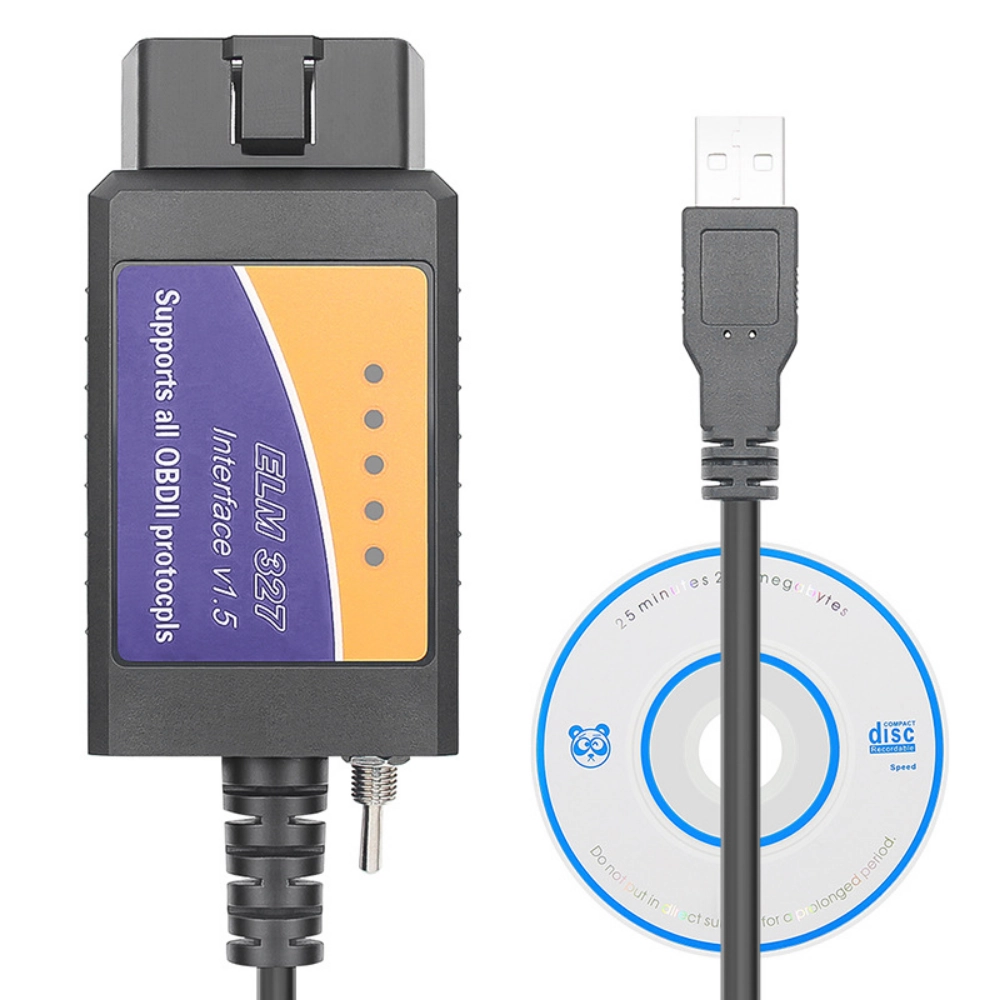

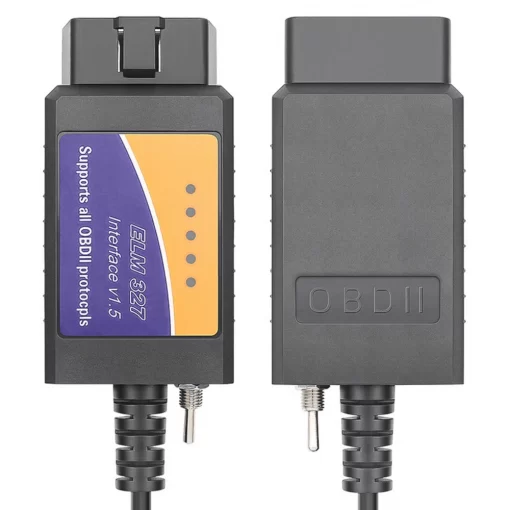

1 x ELM327 USB With Switch Diagnostic Cable



Two commom kind stickers for choose, OEM sticker aslo avaiable.
